ann-benchmarks harness, single core¶
These results come from running HMS and its competitors through the ann-benchmarks runner (commit 2e081ad) on writerslogic-02, an Intel Core Ultra 9 185H under WSL2 with AVX2 and no AVX-512. Each run is pinned to one CPU, for the index build and for every query. HMS is commit 19f4371, using the wrapper in benchmarks/ann-benchmarks/hms. The results file ann_benchmarks_harness_wl02_v1.json has every point, each competitor's version, and each deviation from upstream's docker runner. The main deviations are:
--localwithtasksetreplaces docker;--runs 2;- up to 10 runs in parallel;
- subsets of the competitors' upstream run groups.

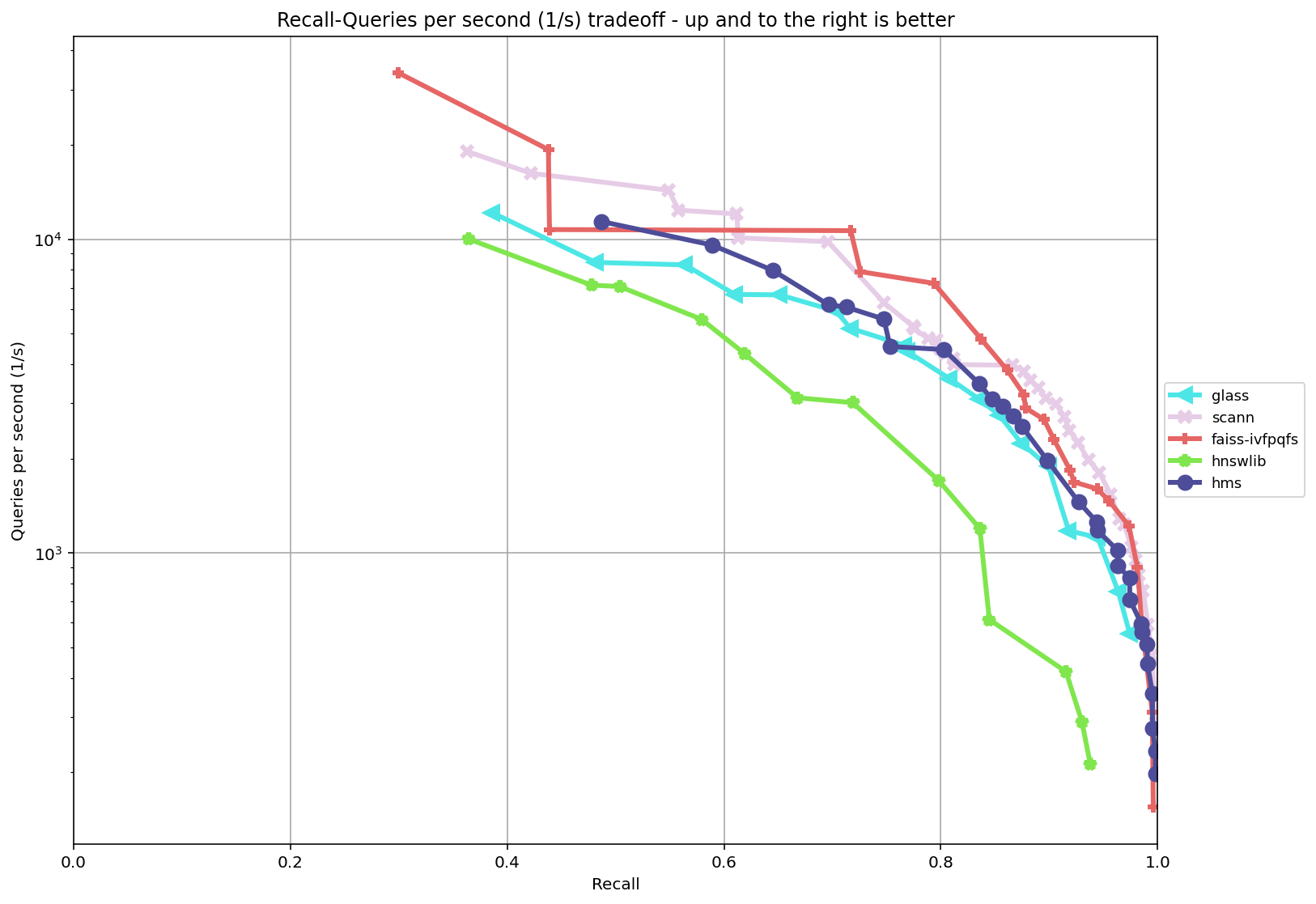

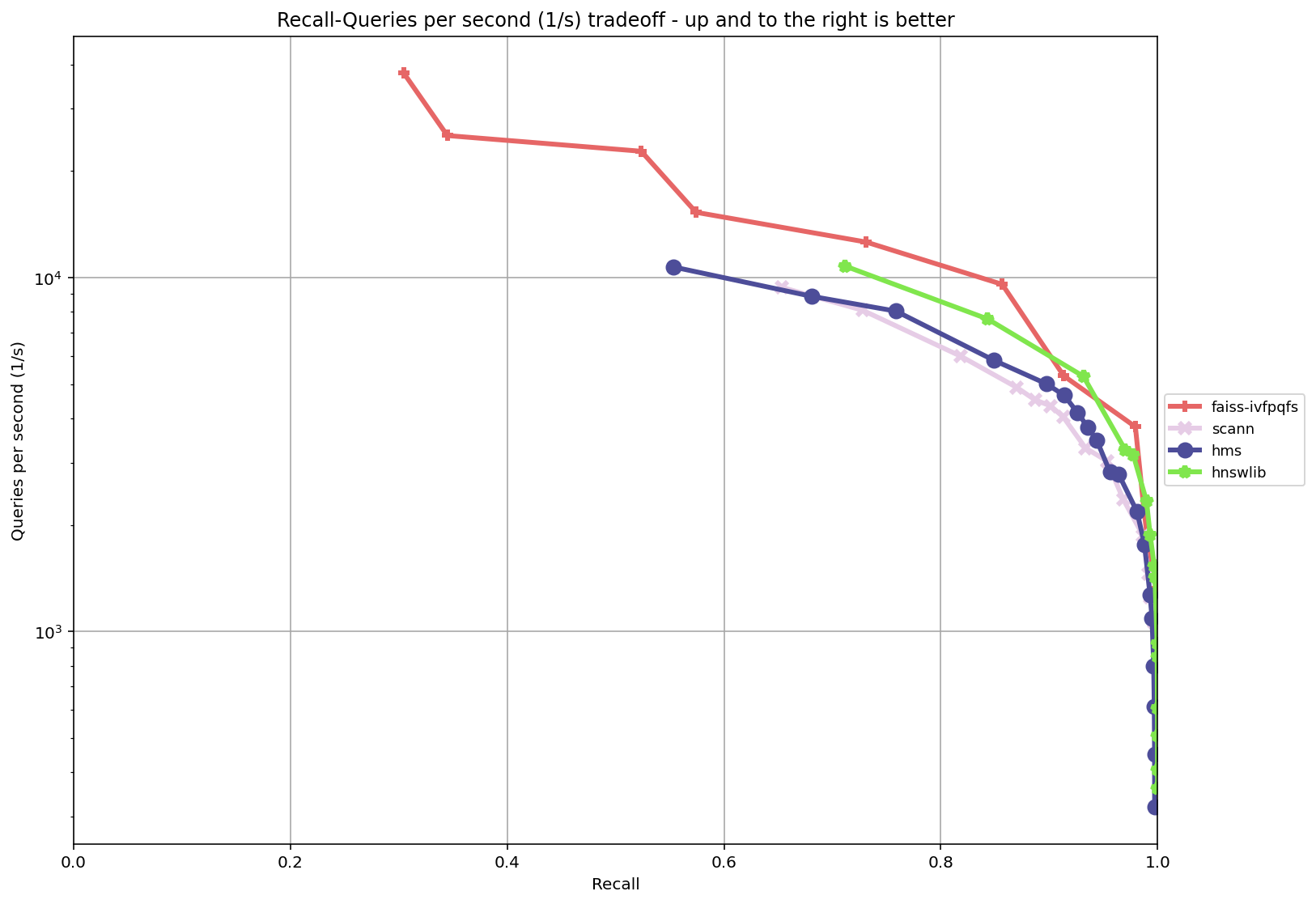

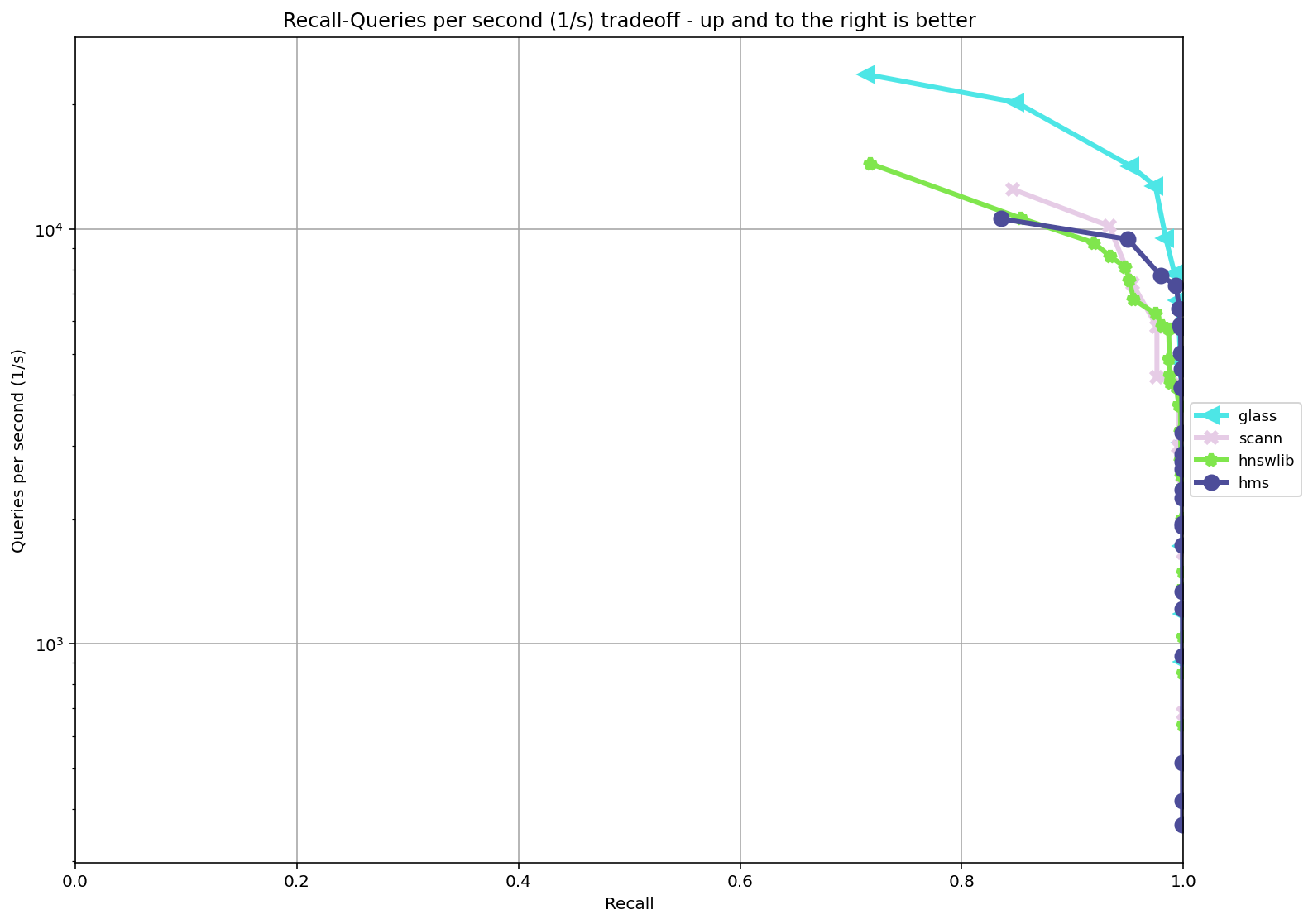

The table gives the best QPS at recall@10 of at least 0.90, 0.95 and 0.99, for HMS and for the fastest competitor that was run. The last column is the ratio of the two. Noise is large on this host: two HMS settings that did identical work in the same run differed by up to 1.37x. Treat ratios within 1.37x as ties. Variation between runs made at different times was not measured, so a gap a little beyond that is a probable loss rather than a firm one.
| Dataset | Recall | HMS QPS | Fastest competitor | QPS | HMS / competitor |
|---|---|---|---|---|---|
| glove-100-angular | 0.90 | 1,457 | scann | 2,985 | 0.49 |
| glove-100-angular | 0.95 | 1,019 | scann | 1,535 | 0.66 |
| glove-100-angular | 0.99 | 511 | scann | 592 | 0.86 |
| sift-128-euclidean | 0.90 | 4,649 | faiss-ivfpqfs | 5,276 | 0.88 |
| sift-128-euclidean | 0.95 | 2,819 | faiss-ivfpqfs | 3,787 | 0.74 |
| sift-128-euclidean | 0.99 | 1,267 | faiss-ivfpqfs | 1,895 | 0.67 |
| fashion-mnist-784-euclidean | 0.90 | 9,454 | glass | 14,180 | 0.67 |
| fashion-mnist-784-euclidean | 0.95 | 9,454 | glass | 14,180 | 0.67 |
| fashion-mnist-784-euclidean | 0.99 | 7,316 | glass | 7,809 | 0.94 |
HMS is not the fastest at any of these points. Four are ties within the noise: GloVe 0.99, SIFT 0.90, SIFT 0.95 and Fashion-MNIST 0.99. GloVe 0.95, SIFT 0.99 and Fashion-MNIST 0.90/0.95 trail by about 1.5x, which is probable rather than firm. GloVe 0.90 is a clear loss at 2.0x.
On GloVe, recall grows slowly with the pool size. Degree 64 needs ef 120 for 0.93 and ef 640 for 0.99, so traversal cost dominates there. Re-ranking the whole pool barely changes recall at a given ef.
Competitors that were not run include NGT/ONNG/QSG-NGT and DiskANN/Vamana. The host has no AVX-512, so glass, faiss and HMS all run their AVX2 paths; published AVX-512 rankings do not carry over. hnswlib's GloVe points are far below its published position relative to scann and are not validated.
